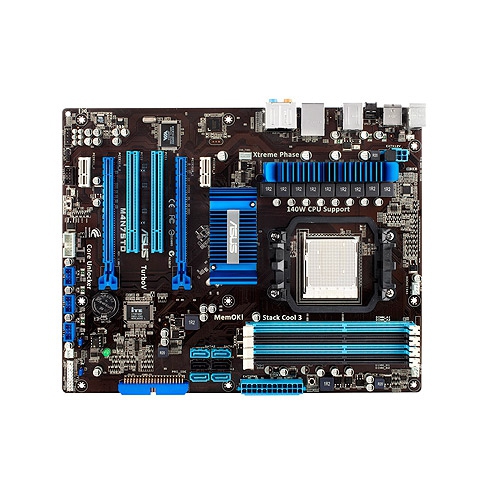

Asus M4N75TD (nF 750a, pci-e 2.0, ddr3, 8 channel, raid)

59,14 €

Manufacturer:

Asus

Name:

M4N75TD moederbord

Model:

90-MIBCW0-G0EAY00Z

Warranty:

3 year(s) carry-in

Stock:

10+ (deliverable in 2 to 5 working days)

59,14 €
(incl. tav and recupel)
Delivery at home: 5,90 €

1 Power
points

ADD TO CART

AMD Socket AM3 ; Phenom™II /Athlon™II /Sempron™ 100 Series Processors
This motherboard supports AMD® AM3 multi-core processors with unique L3 cache and delivers better overclocking capabilities with less power consumption. It features dual-channel DDR3 1333 memory support and accelerates data transfer rate up to 5200MT/s via HyperTransport™ 3.0 based system bus. This motherboard also supports AMD® CPUs in the new 45nm manufacturing process.

NVIDIA nForce® 750a SLI®
NVIDIA nForce® 750a SLI® media and communications processors (MCPs) are the foundation for the world's ultimate gaming PC. It supports the NVIDIA® Scalable Link Interface (SLI) technology that allows two graphics processing units (GPUs) in a single system. The NVIDIA nFORCE® 750a SLI® chipset also supports six (6) Serial ATA 3 Gb/s devices, PCI Express x16 slots with NVIDIA® SLI tm support at dual x8 mode, and up to 12 USB 2.0 ports.

NVIDIA SLI® Technology
NVIDIA SLI® (Scalable Link Interface) makes use of the PCI Express 2.0 bus architecture ´s increased bandwidth and features intelligent hardware and software that allows two GPUs to efficiently work together to deliver earth-shattering, scalable performance. For some applications, this translates into nearly double the performance!

PCIe 2.0 support
This motherboard supports the latest PCIe 2.0 devices for double speed and bandwidth which enhances system performance.

HyperTransport 3.0
HyperTransport™ 3.0 technology provides 2.6 times more bandwidth than HyperTransport™ 1.0, radically improving system efficiency to create a smoother, faster computing environment.

DDR3 2000(O.C.) Support
This motherboard supports DDR3 2000(O.C.) that provides faster data transfer rate and more bandwith to increase memory computing efficiency, enhancing system performance in 3D graphics and other memory demanding applications.

NVIDIA Hybrid SLI® Support
Hybrid SLI® technology is a unique hybrid multi-GPU technology. It turbo-charges performance of discrete graphics cards when combined with the motherboard GPUs.
*Hyvrid SLI® is on select GeForce® GPUs. Visit www.nvidia.com/hybridsli for more information.

8+1 Phase Power Design
To fully unleash the latest generation AM3 CPU's potential, the ASUS M4 Series motherboards have adopted a brand new 8-phase VRM power design. It delivers high power efficiency and supreme overclocking ability. Furthermore, high quality power components can effectively lower system temperature to ensure longer component lifespan. This series also features an extra 1 phase power dedicated to integrated memory/HT controller.

100% Long-Life Solid Cap.
This motherboard uses all long-life capacitors onboard for durability, improved lifespan, and enhanced thermal capacity.

EPU
System Level Energy Efficiency
The ASUS EPU (Energy Processing Unit) provides total system power management by detecting current PC loadings and intelligently moderating power in real-time. It automatically provides the most appropriate power usage for the CPU, VGA card, hard drives, and CPU/chassis fans- helping save power and money!

Core Unlocker
Intelligently Unlocks True Core Performance
ASUS Core Unlocker simplifies the activation of a latent AMD CPU—with just a simple swtich or hot key. Enjoy an instant performance boost by simply unlocking the extra cores, without performing complicated BIOS changes.

MemOK!
Any Memory is A-OK!
MemOK! quickly ensures memory boot compatibility. This remarkable memory rescue tool requires a mere push of a button to patch memory issues. MemOK! determines failsafe settings and dramatically improves your system boot success. Get your system up and running in no time!

TurboV
Feel the adrenaline rush of real-time O.C. - now a reality with the ASUS TurboV. This easy O.C. tool allows you to overclock without exiting or rebooting the OS; and its user-friendly interface makes overclock with just a few clicks away. Moreover, the ASUS OC profiles in TurboV provides the best O.C. settings in different scenarios.

Turbo Key
ASUS Turbo Key allows the user to turn the PC power button into an overclocking button. After the easy setup, Turbo Key can boost performances without interrupting ongoing work or games - with just one touch!!

Express Gate
0 to Internet in Seconds!
Express Gate™ is an ASUS exclusive OS that provides you with quick access to the Internet and key applications before entering Windows®.

O.C. Profile
The motherboard features the ASUS O.C. Profile that allows users to conveniently store or load multiple BIOS settings. The BIOS settings can be stored in the CMOS or a separate file, giving users freedom to share and distribute their favorite overclocking settings.

EZ Flash 2
EZ Flash 2 is a user-friendly BIOS update utility. Simply launch this tool and update BIOS from a USB flash disk before entering the OS. You can update your BIOS only in a few clicks without preparing an additional floppy diskette or using an OS-based flash utility.

CrashFree BIOS 3
The ASUS CrashFree BIOS 3 allows users to restore corrupted BIOS data from a USB flash disk containing the BIOS file. This utility saves users the cost and hassle of buying a replacement BIOS chip.

MyLogo2
Personalize your system with customizable boot logo
You can convert your favorite photo into a 256-color boot logo for a more colorful and vivid image on your screen.

Stylish Heatsink Design
The streamline-shaped heatsink features 0-dB thermal solution that offers users a noiseless PC environment. Not only the beautifully curved fins upgrade the visual enjoyment for motherboard users, but also the special Streamline Airflow Guiding design lowers the temperature of the north bridge chipset through high efficient heat-exchange. Combined with usability and aesthetics, the ASUS streamline-shaped heat-sink will give users an extremely silent and cooling experience with the elegant appearance!

Stack Cool 3
Effective Fanless Heat Dissipation at 0dB
Stack Cool 3 is a fanless cooling solution offered exclusively by ASUS. It effectively and noiselessly transfers heat generated by the critical components to the other side of the specially designed PCB (printed circuit board) for effective heat dissipation - making temperatures cooler by up to 20 °C.

IEEE 1394a interface
IEEE 1394a interface provides high speed digital interface for audio/video appliances such as digital television, digital video camcorders, storage peripherals & other PC portable devices.

High Definition Audio
Enjoy high-end sound system on your PC!
The onboard 8-channel HD audio (High Definition Audio, previously codenamed Azalia) CODEC enables high-quality 192KHz/24-bit audio output, jack-sensing feature, retasking functions and multi-streaming technology that simultaneously sends different audio streams to different destinations. You can now talk to your partners on the headphone while playing a multi-channel network games. All of these are done on one computer.

S/PDIF-out on Back I/O Port
This motherboard provides convenient connectivity to external home theater audio systems via optical S/PDIF-out (SONY-PHILIPS Digital Interface) jacks. It allows to transfer digital audio without converting to analog format and keeps the best signal quality.

GreenASUS
The motherboard and its packaging comply with the European Union ´s Restriction on the use of Hazardous Substances (RoHS). This is in line with the ASUS vision of creating environment-friendly and recyclable products and packaging to safeguard consumers ´ health while minimizing the impact on the environment.

Technische details
Moederbord form factor	ATX
Chipset moederbord	NVIDIA nForce 750a SLI
Ondersteuning voor parallel processing	SLI
Source data-sheet	ICEcat.biz
Meegeleverde kabels	1 x UltraDMA 133/100/66, 2 x SATA, 1 x SLI bridge
Processor
Processorfamilie	AMD family
Processorsocket	Socket AM3
Compatibele processors	Phenom II /Athlon II /Sempron 100
Ondersteuning voor processor FSB	5200 MT/s
Geheugen
ECC
Non-ECC
Maximum intern geheugen	16
Type geheugen	DDR3 2200/1333/1066
Aantal DIMM sloten	4
Audio
Audiosysteem	VIA VT1708S
Audiokanalen	7.1
Gewicht en omvang
Breedte	305
Diepte	244
Netwerk
Netwerkfuncties	Gigabit LAN
LAN controller	Broadcom B5071
Interne aansluitingen
Aansluiting voor ventilator van voeding
Aantal SATA-aansluitingen	6
USB 2.0 aansluitingen	3
S/PDIF uitgang
Aansluiting voor CPU koeler
COM aansluitingen	1
Aansluiting voor ATX voeding (24-pin)
Aansluitingen voor EATX voedingen	1
Systeempaneelaansluiting
Aansluitingen voor behuizingsventilatoren	2
IEEE1394 aansluitingen	1
Aantal Parallel ATA aansluitingen	1
Aansluiting voor audiopaneel aan voorzijde
Aansluitingen achterzijde
PS/2 poort(en)	2
USB 2.0 poort(en)	6
Aantal IEEE 1394-/Firewire-poorten	1
Aantal Ethernet LAN (RJ-45)-poorten	1
Luidspreker/ koptelefoon/ line-out uitgang	1
Microfoon, line-in ingang
S/PDIF uitgang
VGA (D-Sub)poort(en)	0
Aantal externe SATA poorten	0
DVI-D poorten	0
Aantal HDMI-poorten	0
Opslag-controllers
Soort aansluiting (2de) controller	UltraDMA 133/100
Soort aansluiting controller	SATA 3 Gb/s
Soorten RAID	0,1,0+1,5,JBOD
Besturingssysteem/software
Drivers included
Uitbreidingsmodules
PCI Express x16 slots	2
PCI 32-bit/33 MHz slots	2
PCI Express x1 slots	2
BIOS
BIOS type	AMI
Grootte BIOS geheugen	8
ACPI version	2.0
